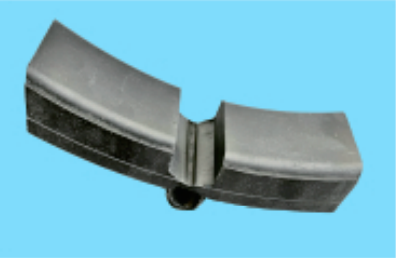

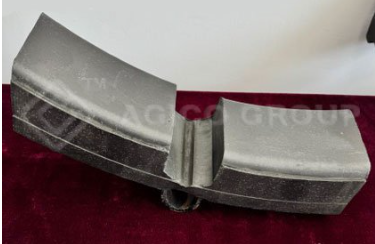

High-friction synthetic brake block–AAR Standard

1. Applicable Standard & Product Positioning

This High-friction synthetic brake block is designed, tested and certified under core North American freight specification AAR M-926, dedicated for heavy-haul North American railways, with supporting annual sampling inspection and manufacturer quality control rules issued by AAR Brake Systems Association. Products can only be operated on North American railway networks after obtaining official AAR certification. Core restricted application scope:

1. Applicable Rolling Stock: Standard North American heavy-duty freight wagons (covered hoppers, ore gondolas, double-stack container cars);

2. Maximum Rated Axle Load: 130 short tons (118 tons) heavy bogie;

3. Maximum Operating Speed: 80mph (128.8km/h);

4. Matching Wheel: Standard 36-inch (914mm) steel tread wheel;

5. Service Conditions: North American mountain lines with 40‰ long downhill gradients, open-air tracks with rain & snow, extreme cold regions down to -40℃;

6. Certification Access Requirements: Manufacturers must complete full dynamometer durability tests, produce and deploy no less than 25,000 shoes within 2 years after conditional approval, and submit annual field service data for recertification audit every year.

2. Structural & Heavy-Duty Semi-Metallic Material Composition

(1) High-Friction Friction Body

AAR-certified semi-metallic asbestos-free modified phenolic resin composite matrix, reinforced with high-content steel & copper fibers, mixed with graphite, zinc sulfide and barite composite friction modifiers. Free of asbestos, lead and other restricted hazardous substances, no toxic flue gas generated under long-term high-temperature braking. Dynamic friction coefficient stably ranges 0.32~0.40, thermal fading rate ≤15% under continuous heavy downhill braking, complying with AAR thermal fading limits. Curved contact surface precisely fits 36-inch wheel tread radian for full uniform contact under heavy high-pressure braking, drastically reducing wheel tread thermal crack, spalling and scuffing risks. Gradient internal buffer micropores absorb massive braking impact load and eliminate high-frequency noise during heavy emergency braking and wet rail operation. All edges are thickened and passivated to resist chipping, corner peeling and delamination under long-distance bumpy freight operation.

(2) Carbon Steel Back Base

Stamped integrally from 5~7mm ASTM A36 cold-rolled carbon steel plate with high tensile strength, superior anti-bending and anti-fatigue capacity to bear braking pressure of 100-ton class heavy loads. Multiple deep trapezoidal anchor grooves are pressed on the inner side; friction compound deeply embeds into grooves during hot molding to reach mandatory AAR bonding shear strength ≥1.2MPa, preventing delamination and sheet peeling under long-term cold & hot cyclic and long downhill drag braking. Standard D-type universal integrated buckle at the bottom perfectly fits AAR standard brake block holders for easy freight yard maintenance replacement. The steel back is equipped with metal wear warning boss: continuous abnormal metal friction noise occurs when residual friction thickness reaches safety limit of 12.7mm to remind mandatory full shoe replacement, eliminating safety hazard of steel back grinding wheel tread. Anti-rust oil dipping treatment is applied on steel back surface to resist rain, snow and salt spray corrosion in open-air environments.

3. Mandatory Performance Requirements per AAR M-926

1. Friction Stability: Friction coefficient fluctuation ≤±18% under normal temperature, rain immersion, 45-minute full-load long downhill drag braking and -40℃ extreme cold environment, thermal fading rate ≤15% after consecutive emergency braking; passed exclusive AAR 45-minute drag durability dynamometer test with minimum retarding force no less than 400 lbf;

2. Extreme Thermal Resistance: Max continuous operating temperature 360℃, instantaneous peak temperature 460℃ under wheel lock emergency braking, no bubbling, carbonization, cracking or layered failure;

3. Long-Term Wheel Protection: Wheel tread wear reduced by over 45% compared with traditional cast iron shoes; wheel-rail equivalent conicity strictly controlled, wheel profile inspection required every 30,000 miles (48,280km) to avoid heavy vehicle hunting instability;

4. Track Circuit Compatibility: Low-conductivity composite formula generates no continuous conductive metal debris to interfere with North American railway signal transmission, passing full AAR track circuit compatibility inspection;

5. Heavy-Duty Noise Reduction & Eco-Friendliness: Braking noise decreased by 8~16dB(A) versus cast iron shoes, complying with North American railway roadside noise control regulations; zero-asbestos eco-friendly formula with biodegradable braking dust, no persistent pollution on open lines and in tunnels;

6. Mechanical Safety Index: Friction body impact strength ≥3.0 kJ/m², room temperature compressive strength ≥80MPa, 250℃ high-temperature compressive strength ≥60MPa, no large-area fragmentation or shedding under emergency wheel lock, wheel-rail slipping and heavy impact conditions.

4. Application Scope, Maintenance & Storage Rules

1. Applicable Rolling Stock: North American mainline heavy-haul hoppers, ore gondolas, double-stack container wagons and cross-border heavy freight vehicles;

2. Mandatory Replacement Standard: Full shoe replacement required when residual friction thickness ≤12.7mm (0.5 inch); grinding, splicing and secondary reuse are strictly prohibited;

3. Running-in Operation Rule: Stable low-speed operation within the first 800km after installation, avoid frequent emergency braking to realize uniform fitting of friction surface; full-load long downhill continuous braking forbidden during running-in period;

4. Storage Condition: Store in dry & ventilated warehouse, avoid open-air rain soaking and long-term sunlight exposure, stacking height ≤10 layers, shelf life 18 months;

5. Mandatory Inspection Cycle: Wheel equivalent conicity inspection every 30,000 miles during routine operation, simultaneously check friction layer cracking, partial uneven wear and chipping defects; submit annual field wear & failure statistics report to AAR Association.

5. Core Differences Between AAR High-Friction & UIC LL Low-Friction Brake Blocks

1. Governing Standards: AAR follows M-926 North American heavy freight specification; UIC LL complies with UIC 541-4 European cross-border medium-light load standard;

2. Friction Coefficient: AAR high-friction grade 0.32~0.40; UIC LL low-friction grade only 0.13~0.17;

3. Load Capacity: AAR adapts to ultra-heavy 118t axle load 100-ton wagons; UIC maximum axle load only 27.5t;

4. Brake Rigging Matching: AAR high-friction shoes are designed for new vehicles with brake levers calibrated for high retardation force; UIC LL can directly replace cast iron shoes without brake system modification;

5. Working Condition Focus: AAR optimized for North American mountain ultra-long downhill 100-ton heavy haul; UIC for European cross-border medium-light short-distance freight.
