φ840mm
Applicable Wheel Diameter
375mm
Overall Length
145mm
Effective Width

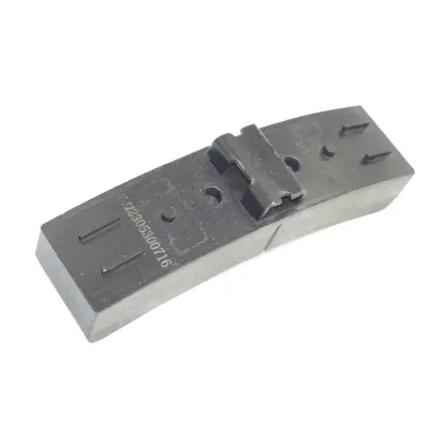

CT-E Type subway brake block
Train & Rail Components
Product Overview: The CT-Esubway brake block is an asbestos-free, low-friction synthetic tread brake shoe designed for standard subway vehicles with 840 mm wheel diameter. It features a curved monolithic structure (as shown in the figure), manufactured through hot-pressing of a friction element and a steel backing, compatible with mainstream domestic subway A/B-type tread braking systems and compliant with the T/CAMET 04004.10 industry standard for urban rail synthetic brake shoes.
CE Certified · IEC62619 · UL9540 · ISO 9001 · FOB/CIF available
Specifications & Features
Product NameCT-E Type subway brake block
Model No.TRC-03
Product TypeNon-asbestos composite brake block
Applicable Wheel Diameterφ840mm
Overall Length375mm
Effective Width145mm
New Friction Thickness45mm
Allowable Wear Limit10mm
Arc RadiusR420mm
Single Net Weight2.8kg
Density2.0~2.1 g/cm³
Average Friction Coefficient0.26~0.38
Compressive Strength (Normal Temp)≥100MPa
Hardness (HRR)95~110 HRR
Wear Rate≤0.05 cm³/MJ
Max Working Temperature350℃
Steel Back MaterialQ235 low carbon steel
Standard ComplianceT/CAMET 04004.10, GB/T 1804-v
Application VehicleMetro A/B type vehicle
Mounting StructureBottom buckle positioning
Fire Resistance GradeClass V0
Service Life (Mileage)≥60,000 km
Product Description
- Product Overview: The CT-E subway brake block is an asbestos-free, low-friction synthetic tread brake shoe designed for standard subway vehicles with 840 mm wheel diameter. It features a curved monolithic structure (as shown in the figure), manufactured through hot-pressing of a friction element and a steel backing, compatible with mainstream domestic subway A/B-type tread braking systems and compliant with the T/CAMET 04004.10 industry standard for urban rail synthetic brake shoes.
Backside II: Structural and Material Specifications Friction material: Asbestos-free resin-based semi-metallic composite containing graphite, copper fibers, and inorganic friction fillers; free from dust contamination and non-damaging to wheel tread surfaces. The curved working surface precisely conforms to the wheel's curvature, ensuring uniform braking contact.
Steel backing base: stamped low-carbon steel plate with reserved material-gathering grooves/positioning clips on the inner side, integrally formed with the friction component through high-temperature hot pressing, offering high bonding strength and resistance to delamination or detachment; equipped with dedicated positioning clips at the bottom for direct installation with brake shoe supports.
External characteristics: The overall design features a long, curved profile without segmented grooves; corners are chamfered for smoothness. It exhibits no abnormal braking noise and minimal thermal degradation, with stable friction performance under both dry and wet conditions, making it suitable for frequent start-stop braking scenarios in urban subway systems.
III. Core Performance Advantages: The friction coefficient remains stable across temperature ranges; braking performance shows minimal degradation under low temperatures, water exposure, or high temperatures, ensuring smooth braking without screeching or wheel scratches; featuring a low-wear design with low energy consumption per unit braking force and a longer service life than conventional cast iron brake pads; free from asbestos and heavy metals, environmentally friendly and flame-retardant, producing no toxic emissions during high-temperature braking; its curved profile precisely matches the wheel tread curvature of the R420 model for uniform force distribution, reducing risk of edge chipping or fragment detachment; standardized mounting clips enable easy installation and removal, compatible with the universal interface of CT-series brake pad supports.
