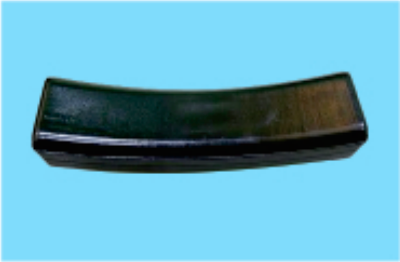

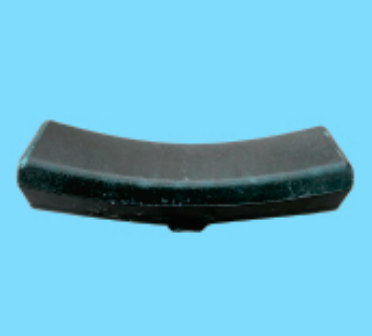

Low Friction LL Composite Brake Block

1. Applicable Standard & Product Positioning

This LL low-friction composite brake block is manufactured strictly in accordance with UIC Leaflet 541-4 (6th edition, 2020) General Conditions for Certification and Use of Composite Brake Blocks, classified as LL (Low Friction & Low Noise) series with matching UIC Usage Guidelines for LL Blocks. It is specially developed as a direct replacement for cast iron brake blocks on legacy freight wagons. No modification to brake rigging or brake cylinders is required for noise reduction retrofitting. It fits cross-border freight rolling stock with maximum speed ≤120km/h, eligible for official UIC certification label and compliant with EU TSI railway interoperability specificationsUIC.

2. Structure & Material Composition

1. Friction Body (Braking Contact Surface) Asbestos-free eco-friendly organic composite material, modified phenolic resin as binder matrix, reinforced with aramid fiber & mineral fiber, mixed with graphite solid lubricant and antimony sulfide friction modifiers. Free of asbestos, lead, cadmium and other hazardous heavy metals, no toxic flue gas generated under high-temperature braking. Nominal dynamic friction coefficient ranges 0.13~0.17, friction fluctuation under dry & wet conditions ≤±15%, fully complying with UIC stability limits. Curved contact surface precisely matches standard wheel tread radian for wheel diameters 680/730/760/840mm, realizing uniform contact during braking and reducing wheel tread spalling & scuffing risks.

2. Steel Back Base Stamped from 4~5mm cold-rolled Q235 low-carbon steel plate. Multiple trapezoidal anchor grooves are pressed on the inner side; friction compound embeds into grooves during hot molding to reach UIC-standard bonding strength, preventing delamination and chipping under long-term cold & hot cyclic braking. Standard integrated buckle at the bottom fits international universal brake shoe holders for easy maintenance replacement. The steel back acts as a wear warning component: abnormal metal friction noise will occur when the friction layer wears down to safety limit.

3. Mandatory UIC Performance Requirements

1. Friction Stability: Friction coefficient fluctuation ≤±15% under normal temperature, rain immersion and long downhill continuous braking; stable braking performance at -40℃ extreme cold after dedicated winter bench test in Vienna;

2. Thermal Resistance: Max continuous operating temperature 320℃, short peak temperature 420℃ under wheel lock emergency braking without bubbling, cracking or carbonization failure;

3. Wheel Protection: Wheel tread wear reduced by over 50% compared with traditional P10 cast iron blocks; wheel-rail equivalent conicity controlled within 0.40 maximum limit to avoid vehicle running instability;

4. Track Circuit Compatibility: Non-metallic formula causes no interference with railway track signal circuits, passing UIC compatibility inspection;

5. Noise Reduction: Braking noise decreased by 10~18dB(A) vs cast iron blocks, meeting European freight wagon noise control regulations.

4. Application Scope & Maintenance Rules

· Applicable Rolling Stock: European standard open wagons, covered wagons, container freight wagons and cross-border heavy haul vehicles;

· Matching Wheels: Steel tread wheels with nominal diameter 680/730/760/840mm;

· Maintenance Standard: Full replacement mandatory when residual friction thickness reaches 12mm; grinding and secondary reuse are prohibited. Run-in at low speed within the first 500km after installation, avoid frequent emergency braking. Store in dry & ventilated warehouse, avoid sunlight exposure and dampness, shelf life 18 months;

· Inspection Cycle: Per UIC regulation, wheel tread equivalent conicity inspection required every 25,000 km to guarantee vehicle dynamic safety.

5. Core Difference between LL Low-Friction & K High-Friction Brake Blocks

1. Friction Coefficient: LL block μ≈0.15 (low friction, retrofit replacement); K block μ≈0.25 (high friction, for new vehicles, requires brake rigging upgrade);

2. Installation Mode: LL is drop-in replacement without brake system modification; K block needs brand-new matched brake lever assembly;

3. Application Scenario: LL for noise retrofitting of existing wagons; K for newly manufactured freight rolling stock;

4. Wheel Wear Control: LL blocks require regular wheel conicity inspection; K blocks have less impact on wheel profile with longer inspection intervals.
