high-tensile-steel-right-side-frame-crossbeam

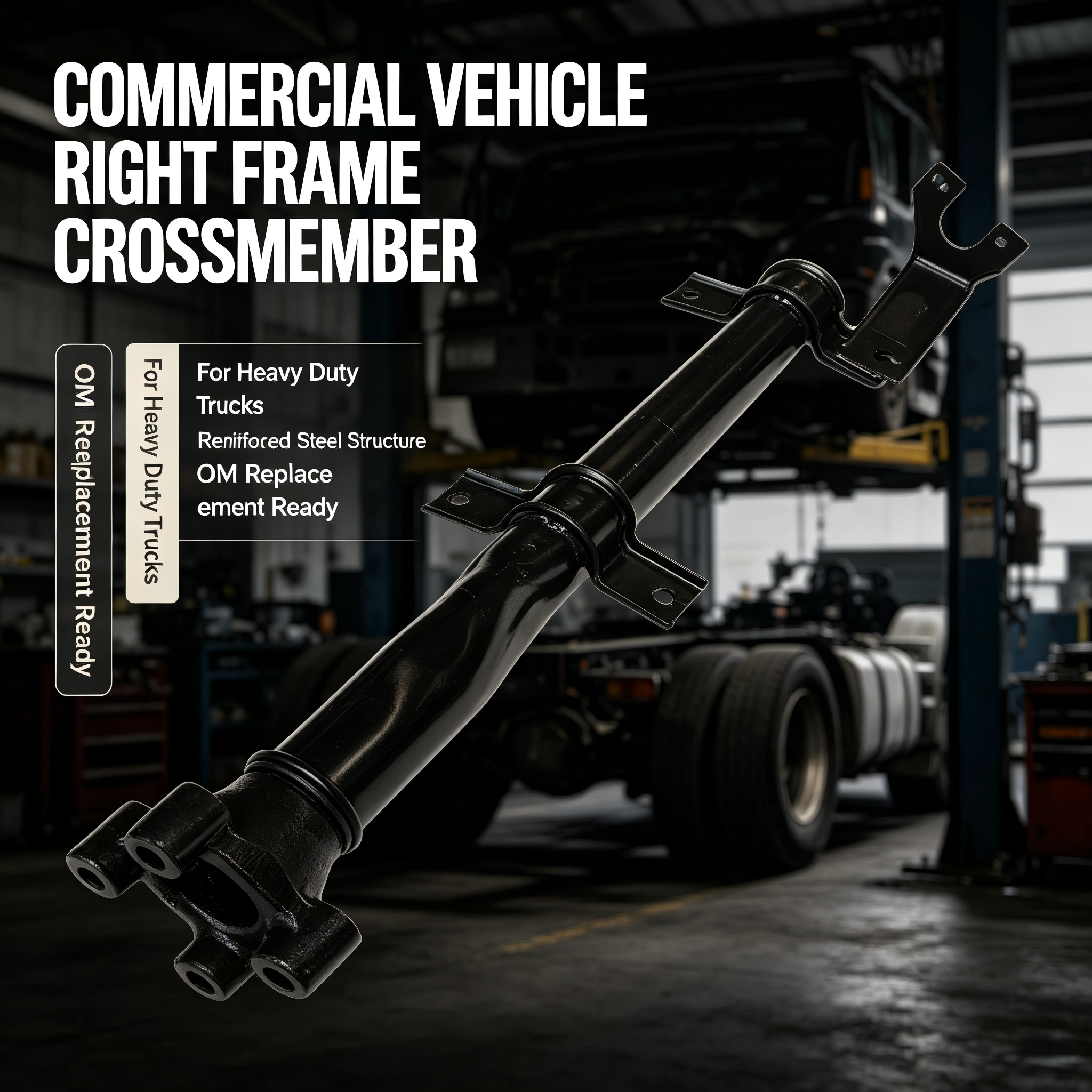

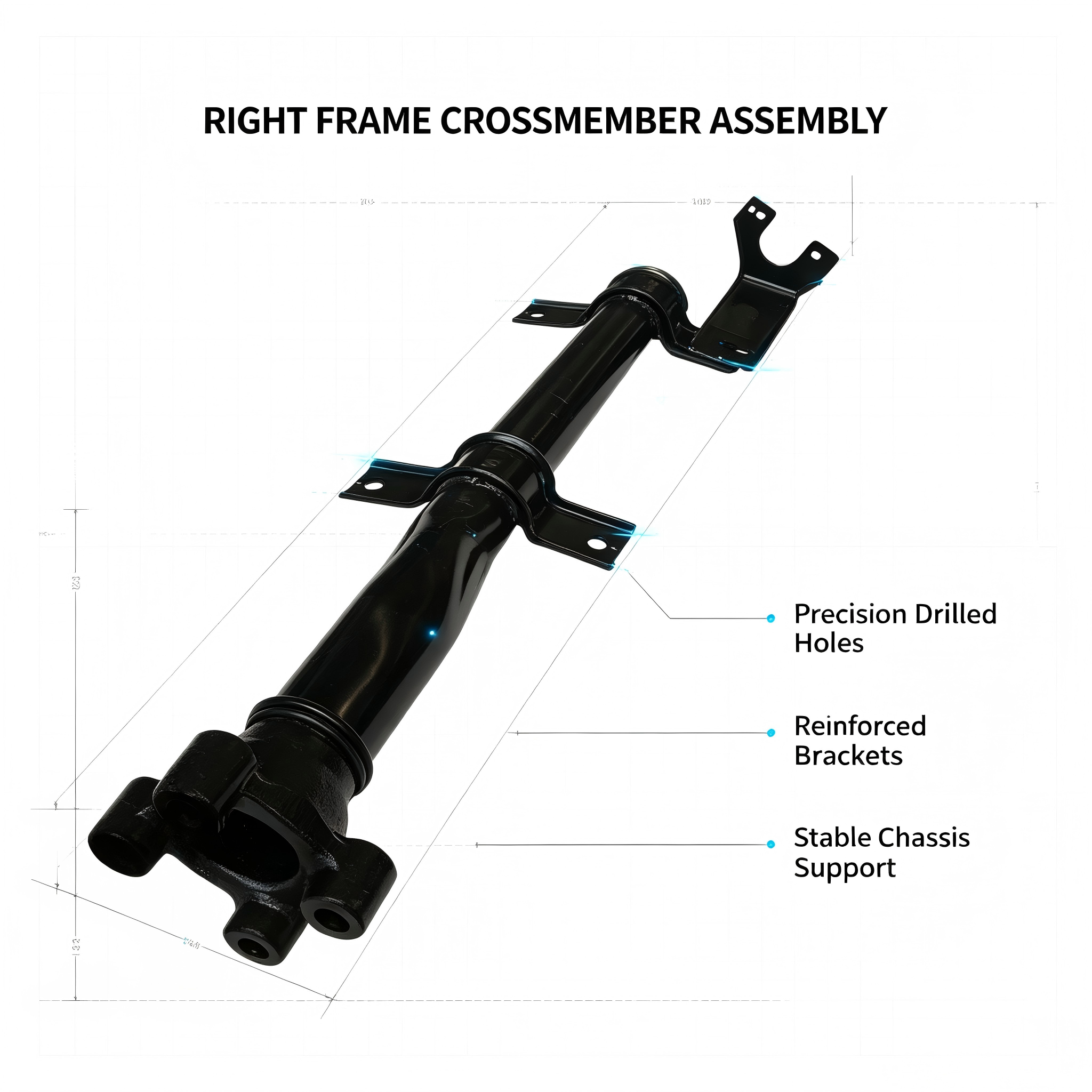

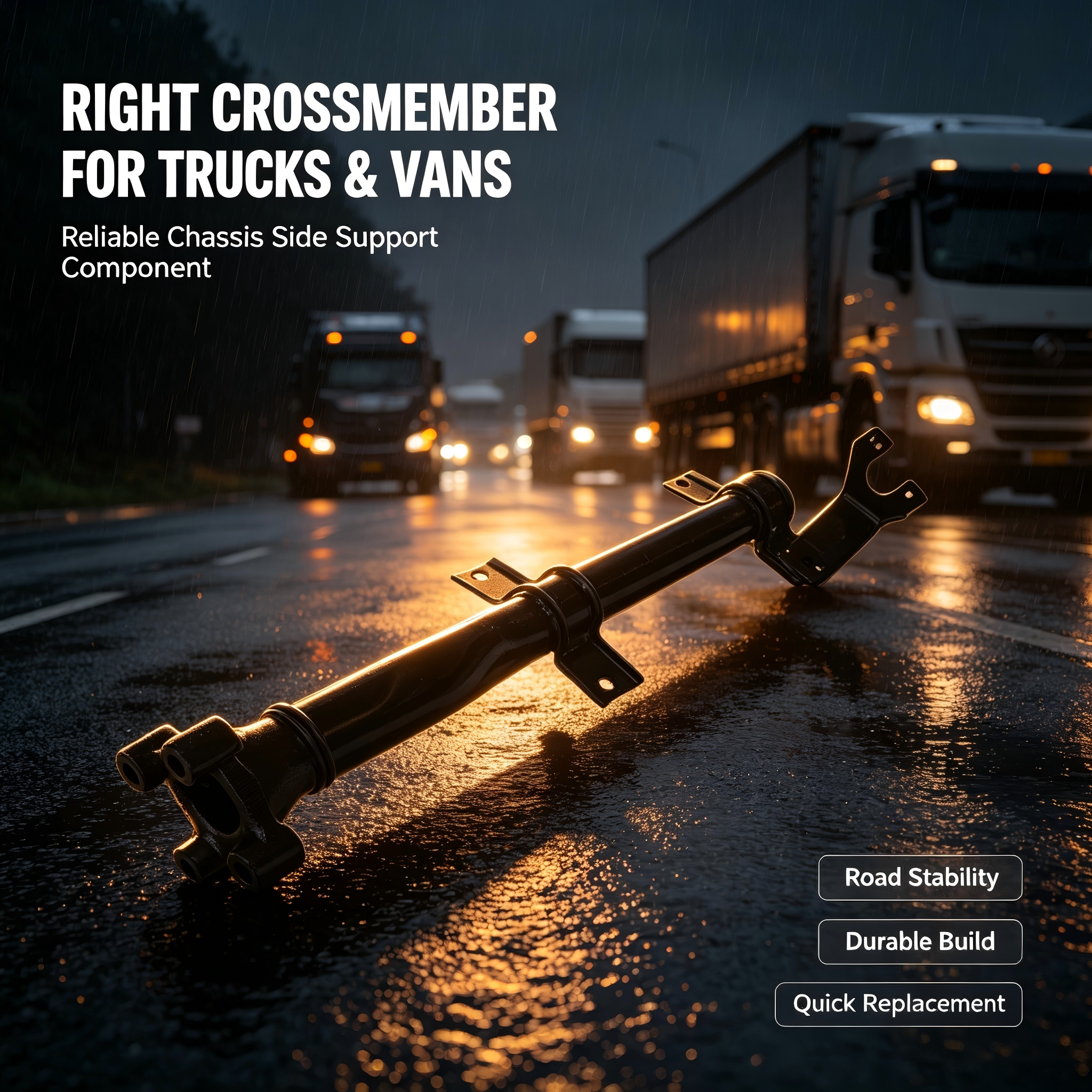

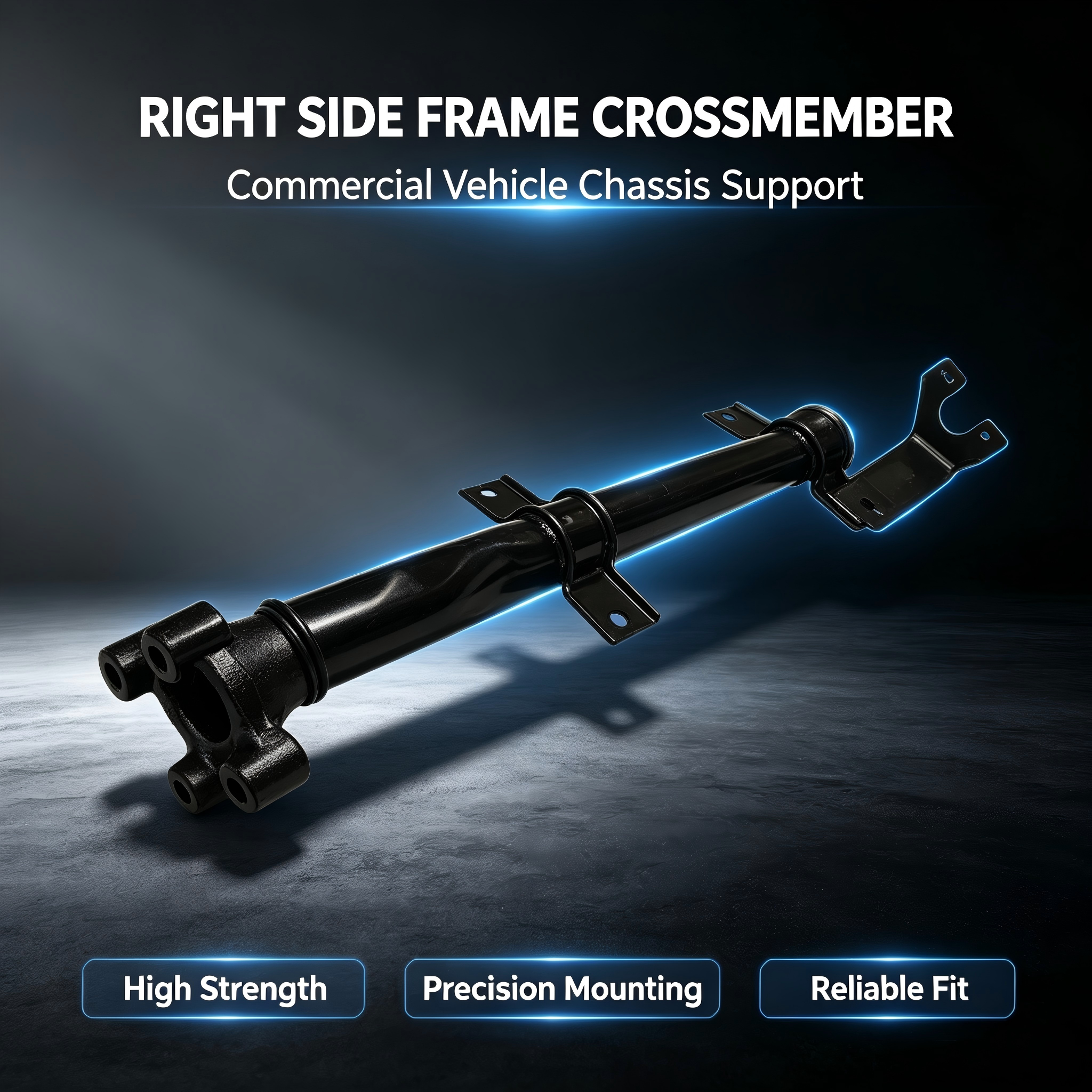

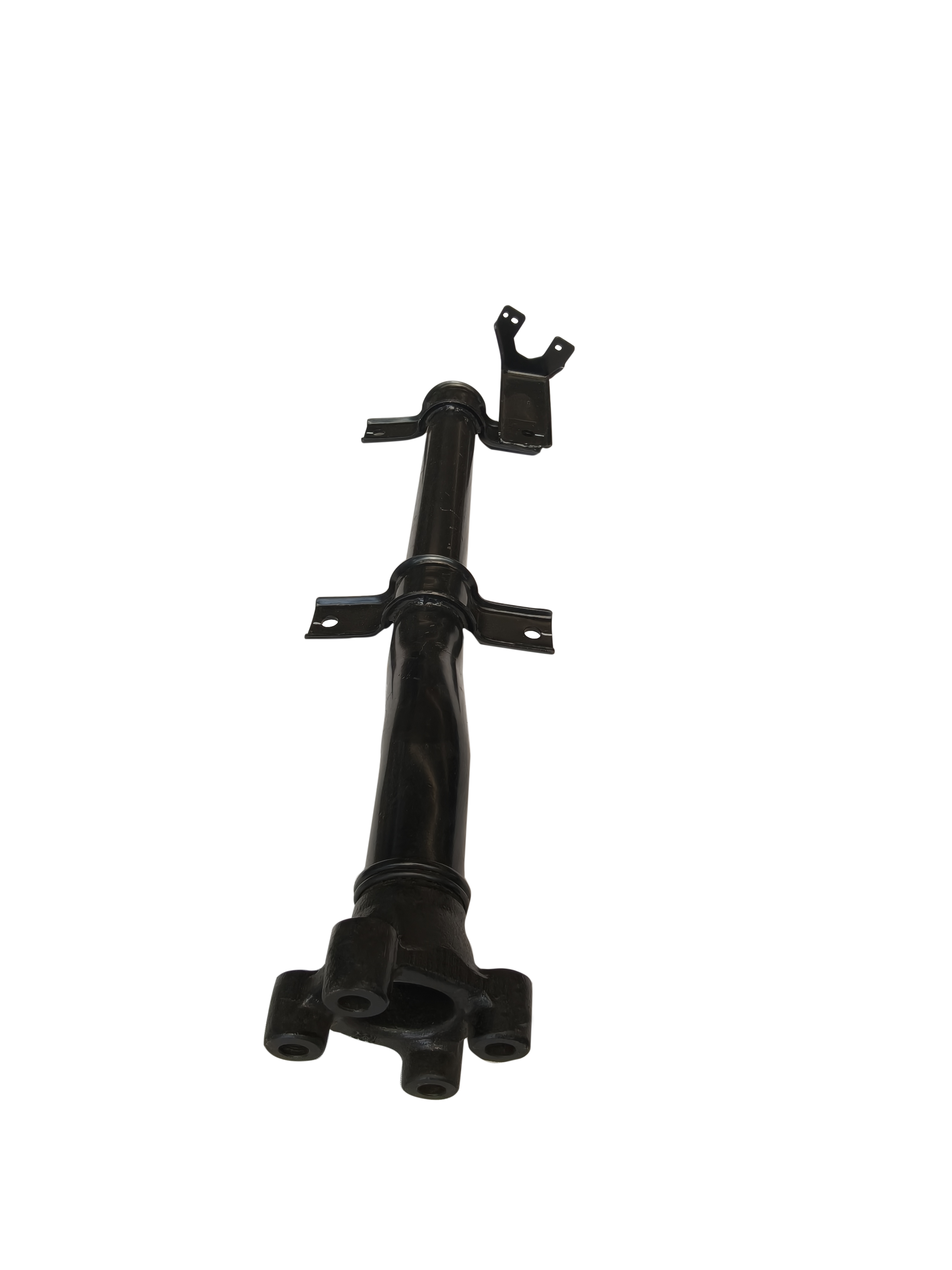

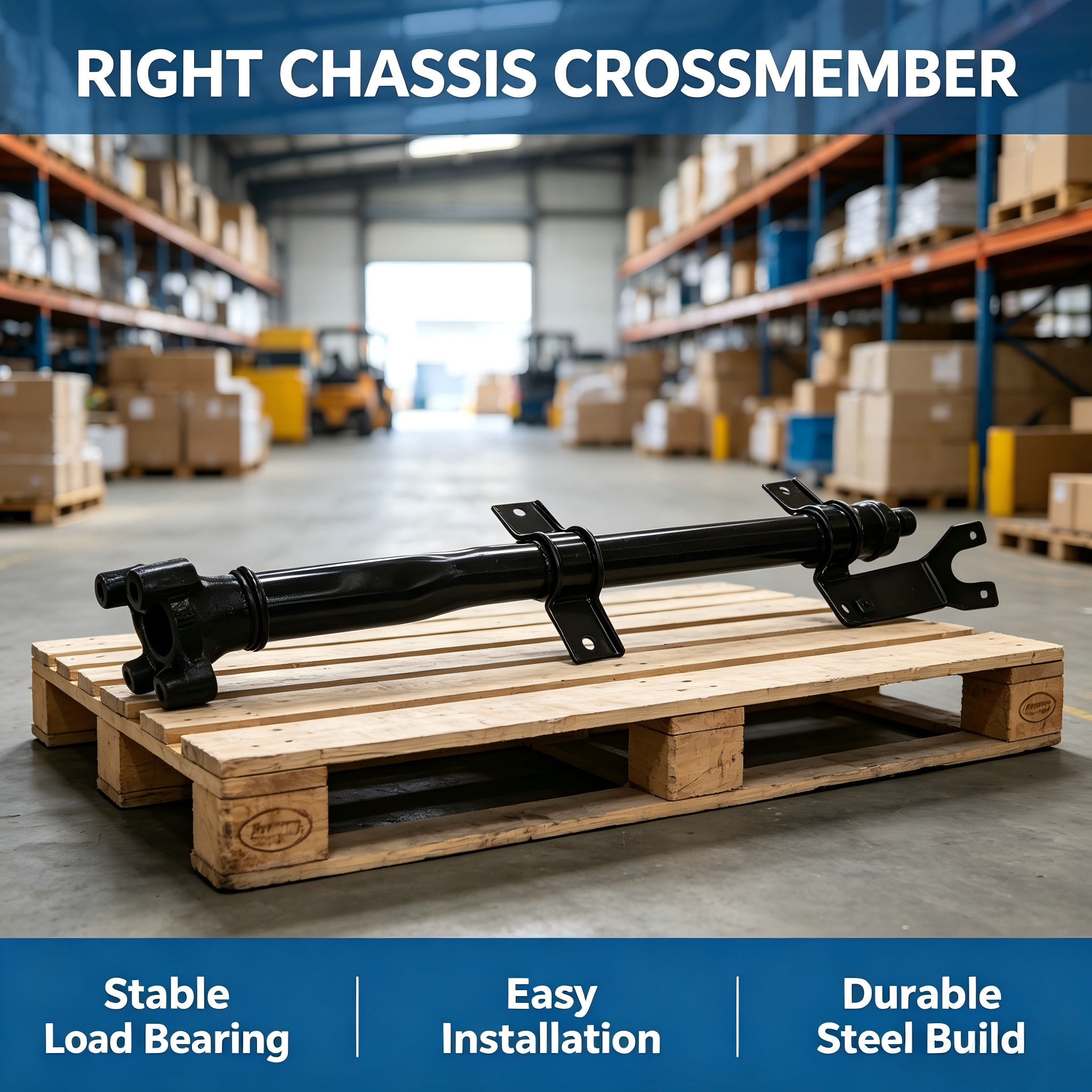

This right-side frame crossbeam is integrally bent from thickened high-tensile structural alloy steel without split welding seams, featuring outstanding load-bearing capacity and resisting distortion & cracking under long-term heavy bumpy loads. CNC precision drilling ensures mounting holes fully match original frames for plug-and-play replacement without cutting. Full electrophoretic anti-rust coating protects against road salt spray, mud and acid-base corrosion, perfectly fitting harsh working conditions such as mountain roads and long-distance freight. Its optimized force-bearing structure evenly distributes vehicle load to reduce frame stress fatigue, compatible with all heavy-duty trucks and transport buses.
Specifications & Features
Product Description
| 参数项目 (Parameter Item) | 英文规格说明 (English Specification) |
| 产品名称 (Product Name) | Right Frame Crossmember / Right Side Rail Reinforcement Beam |
| 适用车型 (Applicable Vehicle) | Heavy Duty Truck, Dump Truck, Tractor Head, Semi-trailer Right Frame Area |
| 主体材质 (Main Material) | Q345B Low-Alloy High-Strength Steel / 16Mn Stamped Steel Plate |
| 横梁截面形式 (Cross-section Type) | Channel / Z-shape / Box-type / I-beam (Depending on load requirement) |
| 板材厚度 (Plate Thickness) | 6.0 mm - 10.0 mm (Reinforced ribs thickened) |
| 总宽度 (Total Width) | 800 mm - 1200 mm (Fits various frame widths) |
| 安装孔位 (Mounting Hole Pattern) | 2-4 M16/M20 bolt holes per end |
| 表面处理 (Surface Treatment) | E-coat Primer + Topcoat / Hot-dip Galvanizing for Corrosion Resistance |
| 额定载荷 (Rated Load Capacity) | Static Load ≥ 5000 kg; Dynamic Impact ≥ 3000 kg |
| 制造工艺 (Manufacturing Process) | CNC Punching + Robotic Welding + Heat Treatment Strengthening |
| 装配位置 (Installation Position) | Right side of frame, connecting right side rail to mid/rear axle support structure |
| 配套附件 (Accessories Included) | Rubber Cushion Pad, U-Bolt, Lock Nut, Mounting Bracket |
Customer Reviews (1)
This right-side frame crossbeam has stable sales. The steel is thick and sturdy, holes align perfectly with original trucks, my repair shop customers always come back to repurchase.
