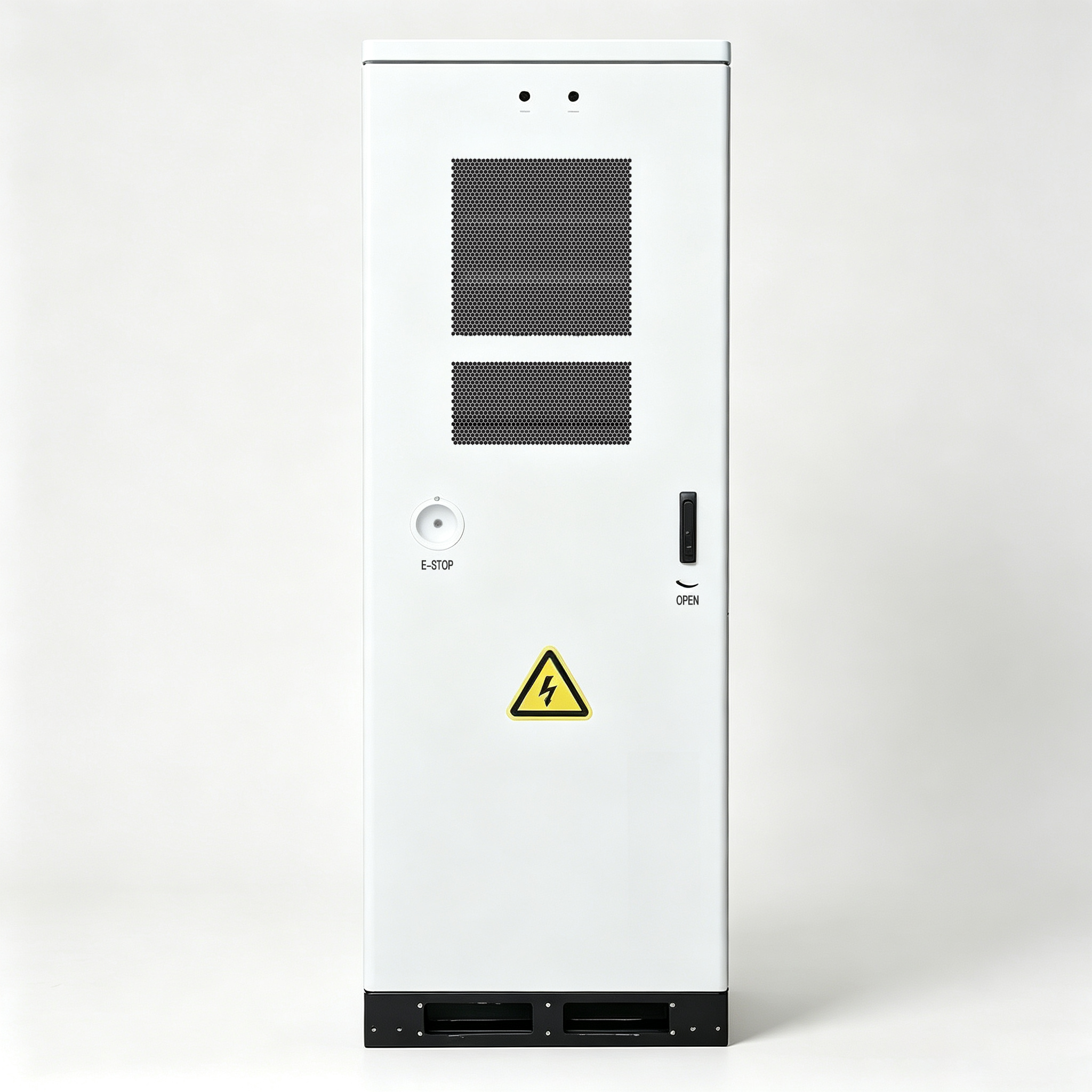

112kWh All-in-one Commercial Battery Energy Storage System, Full International Certifications & Fluoroketone Fire Protection

[Performance Advantages]

Total energy: 112.54 kWh; usable energy: 105.79 kWh. Adopts a 358.4 V high-voltage DC system equipped with large-capacity 314 Ah modules. It supports 0.5 C standard charging and discharging with a high depth of discharge up to 90%, delivering superior energy storage utilization efficiency.

Equipped with an air conditioning cooling and temperature control solution, the unit operates stably within a wide discharge temperature range of -20°C to 55°C for consistent power output under high and low temperatures. It boasts a cycle life of no less than 8,000 times, with an overall service life exceeding 15 years at 25°C ambient temperature.

Designed with standardized high-voltage modules (single module: 51.2 V, 314 Ah), the system features high integration and flexible capacity expansion, ideal for small and medium-sized commercial & industrial energy storage projects.

[Scenario Value]

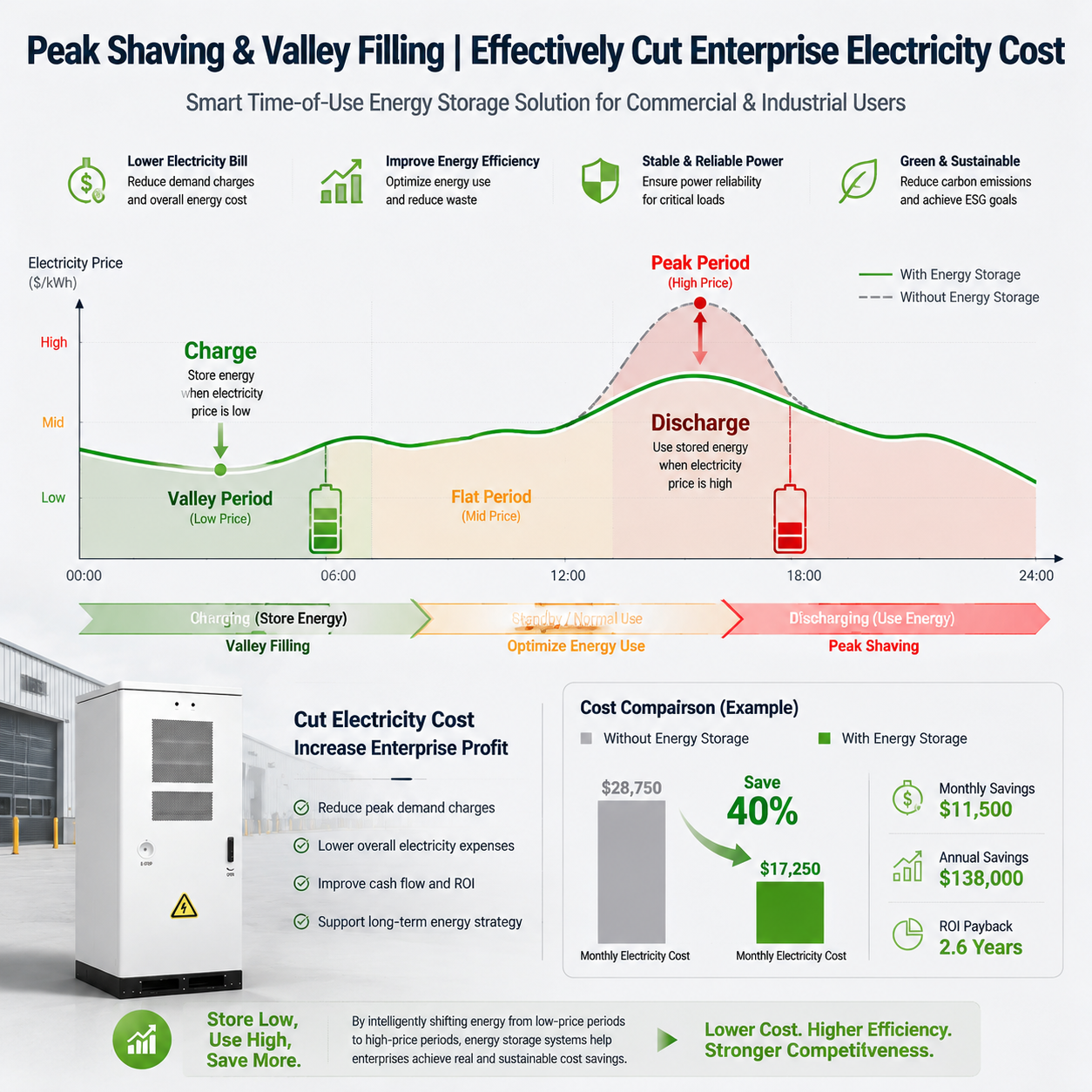

Suitable for commercial & industrial peak-valley arbitrage, peak shaving & valley filling, PV energy storage matching, and factory emergency backup power. It effectively cuts corporate electricity expenses and transformer capacity expansion costs.

As an indoor energy storage unit, it fits indoor scenarios including factory workshops, commercial buildings, and park computer rooms. It can be paired with photovoltaic systems to realize self-consumption of on-site generated power.

Standard CAN/RS485 communication interfaces are available for connection with mainstream EMS energy management systems, supporting multiple power application modes such as grid-connected power supply and microgrid operation.

[Appearance & Craftsmanship]

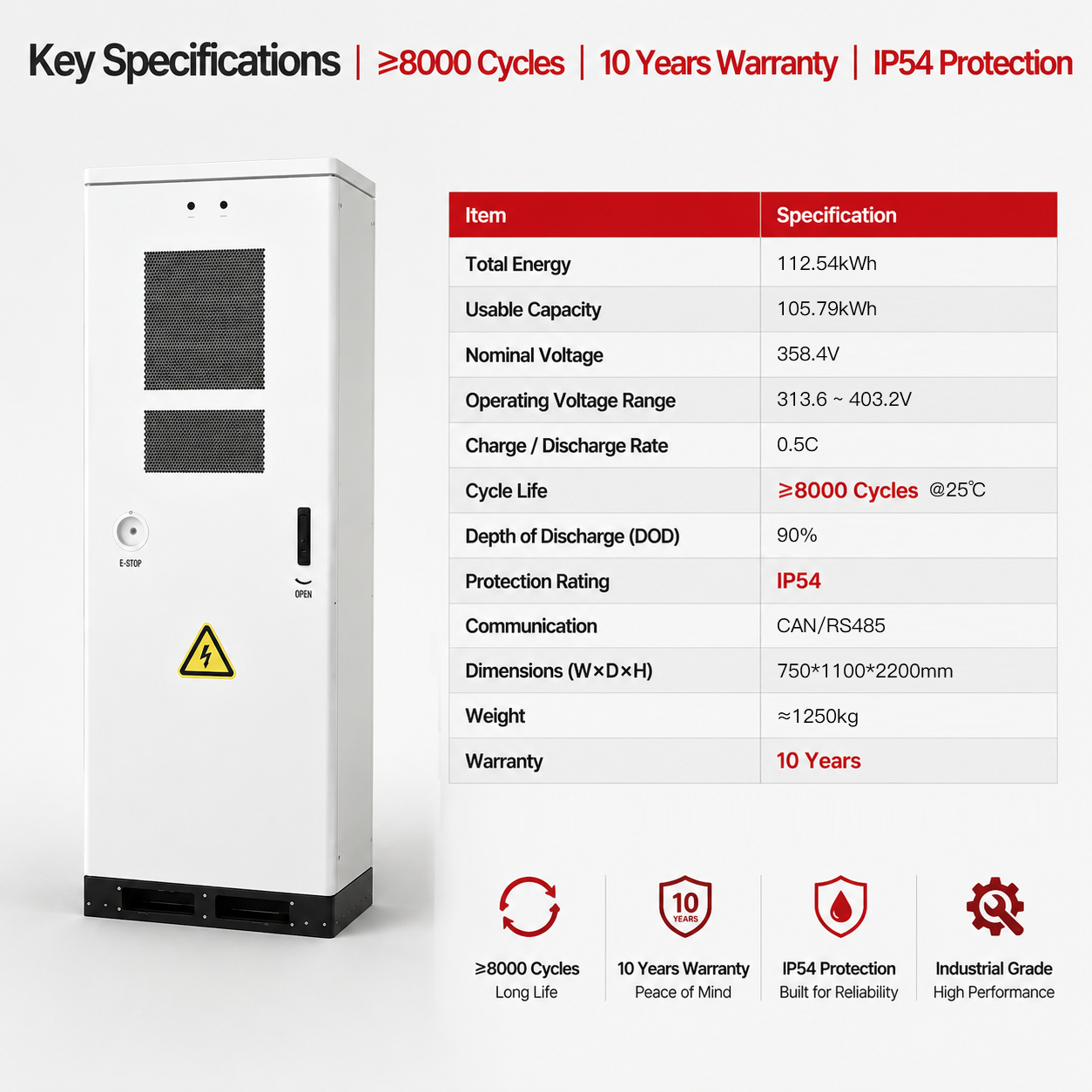

Integrated cabinet dimensions: 750 × 2200 × 1100 mm; total weight: 1250 kg. Compact structure with small floor space, enabling flexible indoor installation and placement.

The whole machine reaches IP54 protection grade and complies with C4 anti-corrosion standard, suitable for humid and lightly dusty indoor industrial environments. It comes with a perfluorinated hexanone fire suppression device as standard, featuring an independent built-in fire protection system.

Integrated air-conditioning heat dissipation structure eliminates the need for additional liquid cooling equipment, lowering installation and operation & maintenance thresholds.

[Safety & Intelligence]

Built-in comprehensive BMS (Battery Management System) paired with automatic perfluorinated hexanone fire suppression delivers dual fire protection from cells to the complete unit, eliminating thermal runaway risks.

Full set of international safety certifications: CE, UL1973, IEC62619, UN38.3 and MSDS, meeting access standards for commercial & industrial energy storage projects in Europe and America.

Official 10-year full-unit warranty, ultra-long cycle life and outstanding long-term operational reliability. Wide-temperature storage support reduces power loss for idle equipment.

Standard industrial communication protocols enable remote monitoring of operational data including state of charge, charge/discharge power and cell temperature, simplifying operation and maintenance.
